Shrink Wrap Packaging Machine
>
|
| Place of Origin | China |
| Brand Name | AM |
| Certification | CE,DAS,ROHS,ISO9001 |
| Model Number | ZWD-300 |

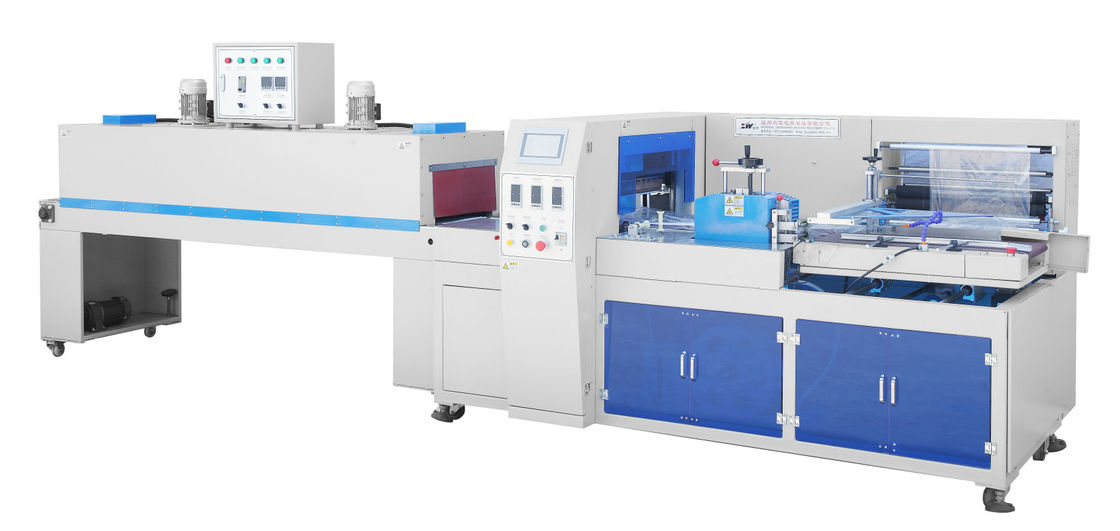

Automatic L Bar Sealer And Shrink Tunnel, Auto Shrink Film Packing Machine
Function: It is suitable for the packaging requirements of cargo storage, transportation, and mechanical loading and unloading operations. Widely use the packaging cost of products such as foreign trade export, food, and beverage, irrigation, paper making, dyes, plastic chemicals, glass ceramics, machine S electroforming, etc., improve production efficiency, and prevent damage of goods during handling, and play Dust, moisture and cleaning.
Ordinary film charter has a synchronous electronic gear, the electronic cam servo control system has long replaced the cumbersome mechanical cam mechanism, it is relatively easy to achieve the synchronization relationship between moving objects according to the designer's requirements. Several motion mechanisms of the film wrapping machine use the servo motor as the driving shaft to complete the task from feeding the bottle to feeding the paper to sending the film. The main drive using one servo motor will be used as the synchronization target for several other axes, and all angular phase relationships will depend on the main drive motor.
Product Details
Control System.
The servo control system is fully capable of meeting the basic motion control of all motors of the film wrapper and the synchronous motion control between them. The man-machine panel, which integrates the logic control in the packaging process and has a display function, can transmit commands and motion characteristic parameters to the motion control part through the input of parameters and can feedback the running status and alarm of the front machine in time. status.
Main technical parameters
| Model | 150 | 180 | 210 | |||
| Packing size | L: | L:100mm-450mm | L:150mm-530mm | L:180mm-600mm | ||
| W: | 30mm-350mm | 30mm-350mm | 30mm-350mm | |||
| H: | 35mm-70mm | 65mm-100mm | 80mm-130mm | |||
| Power Supply | Packing Machine:220V/50-60Hz | Shrink furnace:380V/50-60Hz/3phase | ||||
| highest speed | 80 packs / min. | |||||
| Applicable film | POF folded film | |||||
| Maximum film | 530mm(W)×280mm(outer diameter)；530 mm (width)x 280 mm | |||||
| power | 5.5kW+14.5KW | |||||
| Air pressure | ≤0.5MPa(5 bar) | |||||
| Mechanics size | Packing Machine:2300*1200*1600mm | |||||
| Shrink furnace size:2600*800*1650mm | Furnace size:2300*400*230mm | |||||
| Mechanical weight | Packing Machine:650kg | Shrink furnace:400kg | ||||
