High Speed Corrugated Box Folder Gluer Machine Automatic YDS-800BTG
  • High Speed Corrugated Box Folder Gluer Machine Automatic YDS-800BTG
  • High Speed Corrugated Box Folder Gluer Machine Automatic YDS-800BTG

High Speed Corrugated Box Folder Gluer Machine Automatic YDS-800BTG

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number YDS-800BTG
Product Details
Model:
YDS-800BTG
PAPER THICKNESS:
200—800g/㎡
MAX Speed:
250m/min
Size:
14500×1450×1500mm(L W H)
Weight:
6.5T
Power:
16KW
High Light:

High Speed Corrugated Box Folder Gluer Machine

,

Corrugated Box Folder Gluer Machine Automatic

,

corrugated folder gluer machine

Product Description

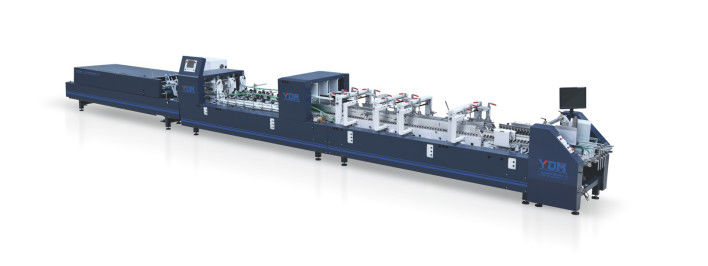

YDS-800BTG High Speed Automatic Folder Gluer



Profold

●meet variety of complex boxes adjustments.

● Long re-folding device ,1st folding line is 180 °, 3rd folding line has 135.It is use for easy opening boxes.



Lock-bottom Section

● Lower gluing tank both at left and right

● Multi-layer sealing anti-leaking device is used in shaft core.

● Stainless steel gluing wheel is used.

● Stainless steel lock bottom device :10pcs

● Modual design for bottom lock accessories ,easy for adjustment .



lower gluer tank

● equip with two larger mechanical lower gluing device(left and right), special design avoid glue splashing at high speed production and easy removal for clear and maintenance.



Folder

● Special long folding section, boxes can be well folded and formed in this section.

● Rail-guide for belts are used to avoid belts going to sides.

●to meet various kinds of work and precisely for blanks.

●smooth and accurate folding of 2nd and 4th creases



Conveyor

● Long conveyor design

● Pneumatic control

● The upper section can be moved front and back.

● The two belts are in driving system, so they could be in more synchronous running.



Product parameters

PAPER THICKNESS 200—800g/㎡
MATERIAL CARDBOARD,B.C.E.F.Ncorrugated
Box Type

One side maxW×L:800×600mm min:120×75mm

Lock bottom maxW×L:750×600mm min:210×80mm

4 corner maxW×L:750×600mm min:180×150mm

6corner maxW×L: 700×600mm min:250×160mm

MAX Speed 250m/min
Size 14500×1450×1500mm(L W H)
Weight 6.5T
Power 16KW



High Speed Corrugated Box Folder Gluer Machine Automatic YDS-800BTG 0

High Speed Corrugated Box Folder Gluer Machine Automatic YDS-800BTG 1
