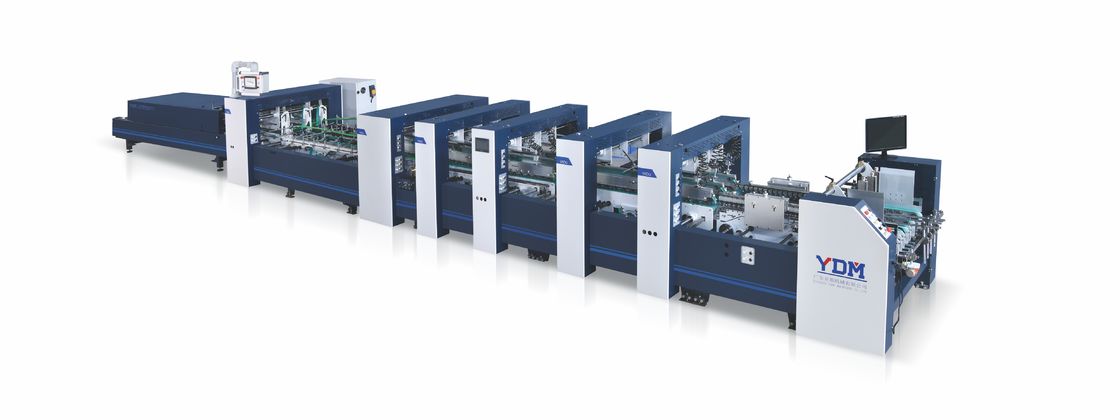

380V 50Hz Industrial Automatic Folder Gluer Machine 300m / Min Speed
  • 380V 50Hz Industrial Automatic Folder Gluer Machine 300m / Min Speed
  • 380V 50Hz Industrial Automatic Folder Gluer Machine 300m / Min Speed
  • 380V 50Hz Industrial Automatic Folder Gluer Machine 300m / Min Speed
  • 380V 50Hz Industrial Automatic Folder Gluer Machine 300m / Min Speed

380V 50Hz Industrial Automatic Folder Gluer Machine 300m / Min Speed

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number ZX-11000BTG
Product Details
Paper Weight:
Duplex Box 200-1200 G/m2
Max Speed:
300m/min
Overall Dimension:
15500 (L) ×1750 (W) ×1600mm(H)
Weight:
10000Kg
Power Consumption:
28KW, 380V ,3P, 50Hz
Box Type:
Straight Line Boxes ,lock Bottom Boxes ,one Side Glue Boxes And Two Sides Glue Boxes,double Wall Boxes,3 Corner Boxes,4、6 Corner Boxes
High Light:

Industrial Automatic Folder Gluer Machine

,

Automatic Folder Gluer Machine 380V

Product Description

ZX-11000BTG Automatic Folder And Gluer Machine



FEATURES

● The machine is unit-type structure, which can work in with other function structures.

● Modular structure and hommization design can enhance the installation and box change-over time.

● Inner couriers in the machine are adjusted by motors

● Bearings are used in this machines: JAPAN: NSK;CHINA:C&U,SKF,NTN,XJH,JSD. Most of electrical components are Schneider brand.

● The host is controlled by computer with wireless remote device and improved the operations flexibility.

● The machine adopts below outsourcing packed belts and you can change belts easily without tearing down shafts.

● Feeder , host and delivery systems are controlled by inverters and they can run together or one runs.

● The steel plates are 20mm ,and it makes sure the machine with high speed and no shaking.

● All the adjusting plates are automatic.

● The feeding belt is Japan original Nitta belts.

● The machine has worm-driving system ,which can run more than 15 years.

● Auto motorized adjustment system with wireless remote control

● More longer conveyor section.



Advantages:

● Belts are running in rail guide, will not go to sides.

● Heavy-duty pneumatic longer conveyor, suitable for corrugated, and the whole conveyor can be moved left and right. The two sections of the conveyor can be moved front and back, up and down, more suitable for different corrugated boxes.

● Equipped with jogger, avoiding fish-tail boxes.

● The whole machine is of more compact structure, more beautiful figure.

● Fastening devices for shafts are used to make the machine run more stable and longer service life.

● The speed in pressing section is 30% faster than that in the main section, avoiding the boxes jammed onto



Auto ALIGNMENT

● Auto correct the paper to accurate feeding,avoiding the paper going to sides.

● Equipped with a set of alignment device (left and right)

● Pressure adjustment adopt linear guide device to adjust the height accurately

● Auto motorized adjustment system with wireless remote control

● inner courier can move automatically by electric.



Points To Note

1. your destination Port Handling Expenses and TAX. - BUYER

2. Including Installation at factory. - BUYER

3. Testing materials - BUYER

4. Air compressor - BUYER

5. Exhaust system outside of the machine. - BUYER

6. Foundations : electric power and ducting device. – BUYER

7. Manual book and videos ,Train videos -----seller

DELIVERY 30 WORKING DAYS READY IN CHINA FACTORY
WARRANTY

1 year On Mechanical on normal operation. 6 months on Electrical Parts

(With Effect from the date of Installation)

Excluding :(i) wear & tear parts

(ii) Breakdown of machine caused by misuse or carelessness.

INSTALLATION 1 engineer ( online service via wechat video etc only during Covid-travel ban period)
PAYMENT 30% DOWNPAYMENT TO CHINA. 70% BEFORE SHIPMENT. BY TT.
PACKAGE packed in steel pallet and vacuum PE bags
PRICE USD (FOB SHENZHEN)
