EYD-260A Automatic Small Envelope Making Machine For Red Packet Coupon Envelope
  • EYD-260A Automatic Small Envelope Making Machine For Red Packet Coupon Envelope
  • EYD-260A Automatic Small Envelope Making Machine For Red Packet Coupon Envelope

EYD-260A Automatic Small Envelope Making Machine For Red Packet Coupon Envelope

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number EYD-260A/260B
Product Details
Max Speed:
7000-18000(pcs/h)
Paper Gram:
70-157g/m 2
Motor Power:
1.5kw
Pump Power:
3kw
Machine Weight:
1100kg
Dimension Of Machine:
1550×790×1400mm
High Light:

Red Packet Small Envelope Making Machine

,

Coupon Small Envelope Making Machine

,

Small Envelope Making Machine Automatic

Product Description

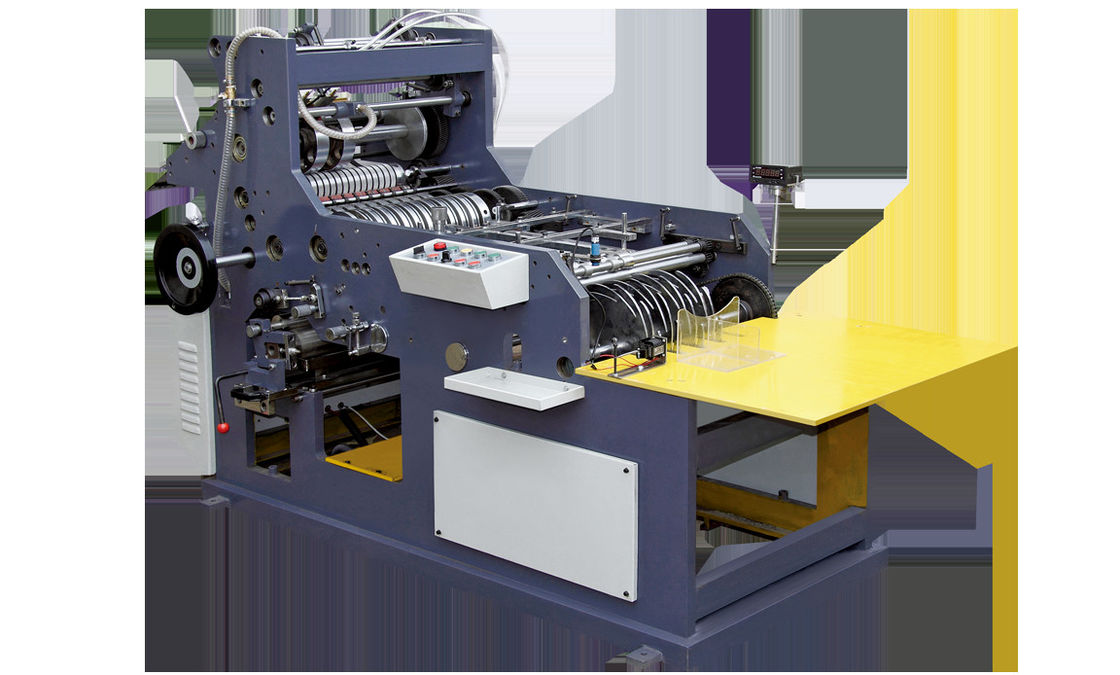

EYD-260A/260B Automatic Chinese Envelope Making Machine



Product Features:

EYD-260 is a newly-developed products on the basis of imported advanced technologies and our own accumulated
experiences from manufacturing envelope machines. The function and quality is equal to the oversea machine, it is a
high price ratio envelope making machine with new technology.
Air-suction bottom feeding system is adopted on EYD-260, it can fold paper on both bottom and flap accurately with
its reliable separating system, automatic feeding with non-stop operation of the machine, automatic creasing and
gluing, twice horizontal folded by automatic air-suction roller with simple and practical longitudinal folding structure.
Electronic preset counter and grouping device are equipped on the collection.


Features:

The machine can be applied for making small red pocket bags and also No.1-6 pocket envelopes with bottom flap fold inside. It can also be used for making nonstandard paper bags within this range such red packet, coupon envelope, chopsticks sleeve and medicine bag etc. The machine features automatic feeding, forming, gluing, gumming, oven drying, stacking and counting in one pass.


Technical parameters:
Model EYD-260A (Type) EYD-260B (Type)
Max speed 7000-18000(pcs/h) 5000-15000(pcs/h)
Paper gram 70-157g/m 2 80-250g/m 2
Max finished product size 160×300mm 160×300mm
Min finished product size 70×80mm 70×80mm
Motor power 1.5kw 1.5kw
Pump power 3kw 6kw
Machine weight 1100kg 1100kg
Dimension of machine 1550×790×1400mm 1550×790×1400mm
