RZJD-G350J Sharp Bottom Paper Bag Machine Full Automatic High Speed
  • RZJD-G350J Sharp Bottom Paper Bag Machine Full Automatic High Speed

RZJD-G350J Sharp Bottom Paper Bag Machine Full Automatic High Speed

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number RZJD-G350J
Product Details
Paper Material Diameter:
Φ1100mm
Inner Diameter Of Paper:
Φ76mm
Paper Material Thickness:
35-80g/m²
Film Width:
80-280mm
Total Weight:
6500kg
Machine Dimesion:
6800*2900*2000mm
High Light:

RZJD-G350J Sharp Bottom Paper Bag Machine

,

Sharp Bottom Paper Bag Machine Automatic

Product Description

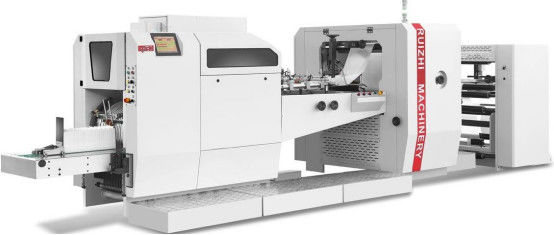

RZJD-G350J Full Automatic High Speed Sharp Bottom Paper bag



Properties and uses

RZJD-G350J Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on.



Main features

1. Available Germany LENZE human-computer touch screen,it is easy to operate and control.

2. Available Germany LENZE motion controller((PC)), integrated with optical fiber,ensure the machine with high speed steadily.

3. Available GermanyLENZE servo motor integrated with Germany original SICK rectifying photo sensor, ensure the printed paper length under tracking precisely.

4. The loading and unloading of the raw materials adopts the hydraulic automatic lifting structure, and the full automatic tension control is adopted for the reel.

5. Available Italy SELECTRA material edge rectify system, substantially cut off the edge alignment time



Main technical parameters

Paper material diameter Φ1100mm
Inner diameter of paper Φ76mm
Paper material thickness 35-80g/m²
Film width 80-280mm
Rolling Film thickness 0.020-0.037mm
Rolling film diameter Φ500mm
Working Air Current More than0.12m3/ minutes,0.5-0.8MPa
Machine power 380V 3 (phase)4 (wire) 32kw
Total weight 6500kg
Machine Dimesion 6800*2900*2000mm



Note:The purchased parts used in this machine will be replaced by the same-level brand that is not lower than the existing brand quality when the equipment is upgraded or updated. The seller will reserve the right without further notice.
