Small Automatic Envelope Packaging Machine High Speed PLC Servo Motor Controlled
  • Small Automatic Envelope Packaging Machine High Speed PLC Servo Motor Controlled
  • Small Automatic Envelope Packaging Machine High Speed PLC Servo Motor Controlled
Small Automatic Envelope Packaging Machine High Speed PLC Servo Motor Controlled

Small Automatic Envelope Packaging Machine High Speed PLC Servo Motor Controlled

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number FZ-180
Product Details
Weight:
2200KG
Total Power:
10KW
Max Size Of Packing:
180*250mm
Min Size Of Packing:
60*70mm
Film Thickness:
0.03-0.06mm
Thickness Of Packing:
2-30mm
High Light:

Small Envelope Packaging Machine

,

PLC Envelope Packaging Machine

,

High Speed envelope packing machine

Product Description

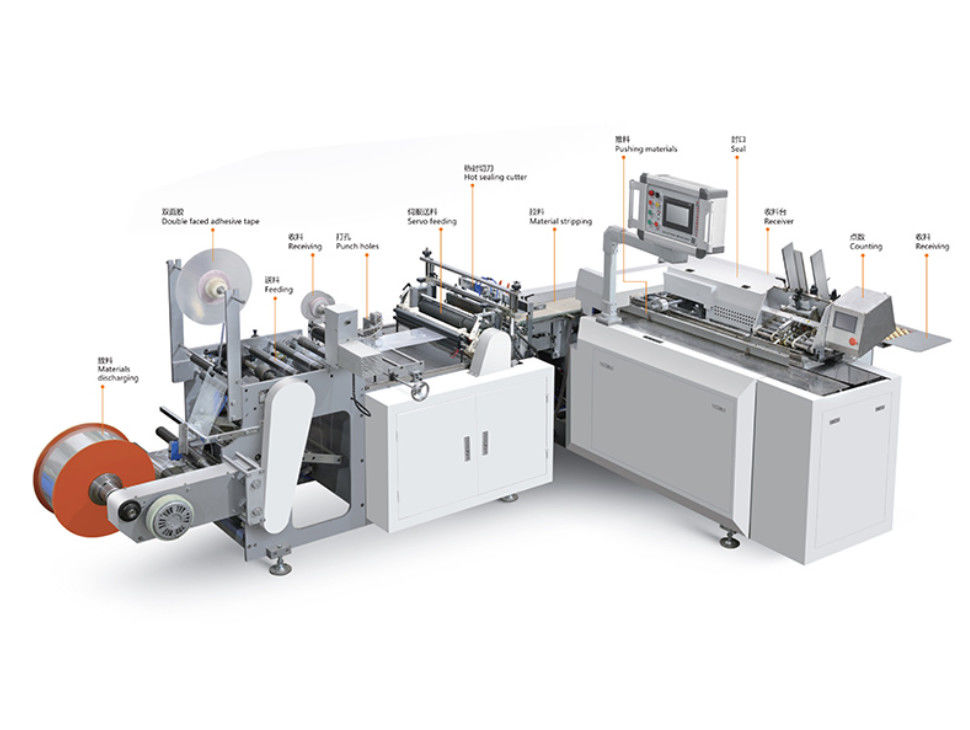

FZ-180 (small machine) automatic high-speed packaging machine





Product Paramenters
max speed 40-80bags/min
max size of packing 180*250mm
min size of packing 60*70mm
thickness of packing 2-30mm
film thickness 0.03-0.06mm
max diameter of film 420mm
opp film specification max:220*320mm
  min:70*70mm
motor power 10kw
machine weight 2200kg
dimension of machine 4500*3300*1650mm



Introduction to FZ-180 (Small Computer)

1. Collating pages: comes with a collating function. A variety of products can be packed in one bag, and the machine can be configured according to customer needs to achieve the collation effect you need.
2. Bag making: the bag machine has been prepared. You only need to buy raw materials for bag making to perfectly combine packaging materials with bags to produce the packaging products you need. There is no need to purchase additional bags, which saves time and effort, and at the same time reduces costs, improves production efficiency, and increases profit margins.
3. Bagging: The whole machine is controlled by PLC servo motor. The overall action adopts pneumatic layout. Improve the grade of packaging products and completely replace the new machine for manual packaging.


Packing & Delivery

The wooden case is customized according to the dimension of the machine for the long time shipping and transfering.
Shipping a whole set of the machine:

1. Preparing and checking the toolbox wearing part and the manual book.
2. Cleaning the dust and the scrap after testing the machine with the air pump.
3. Apply rust-proof liquid.
4. Disassemble some certain part of the machine.
5. All the disassemble part, toolbox, main machine package by film
6. There will have screw fix the machine at the bottom of the wooden case



Small Automatic Envelope Packaging Machine High Speed PLC Servo Motor Controlled 0Small Automatic Envelope Packaging Machine High Speed PLC Servo Motor Controlled 1
