Industrial Card Dispenser Machine Multifunctional For Card Books
  • Industrial Card Dispenser Machine Multifunctional For Card Books
  • Industrial Card Dispenser Machine Multifunctional For Card Books

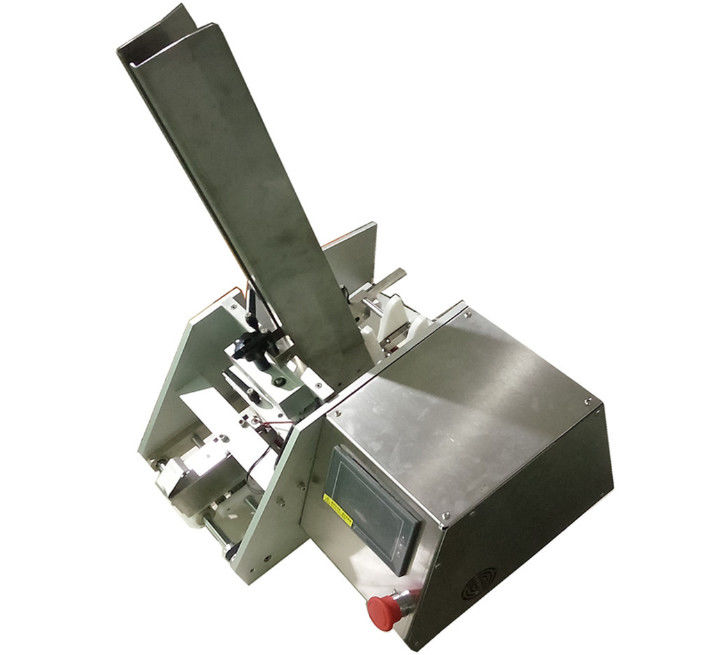

Industrial Card Dispenser Machine Multifunctional For Card Books

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number PF-300
Product Details
Model:
LW-300
Product Thickness Range(mm):
1mm-6mm
Maximum Velocity(M/min):
50
Product Width:
60-240mm
Product Length:
100-380mm
Power Supply:
220V 50-60HZ/6KW
High Light:

Industrial Card Dispenser Machine

,

Card Dispenser Machine Multifunctional

Product Description

Homework bagging machine, notebook bagging machine, notebook loose-leaf inner core bagging machine



Scope:

1. The device will be a whole pack of sheet, (sheet products such as: red envelopes, postcards, greeting cards, hanging signs, stickers, envelopes, etc. ; folded and in-shape products such as: brochures, promotional posters and various sizes of folded products; in-shape products such as: brochures, card books, notebooks, exercise books, comic books, magazines and a variety of different sizes of in-shape products) . According to the set number (this number) automatically into the bag.

2. Light body bag, printing bag, head card bag can be applied.

3. Self-adhesive, heat seal, automatic punching arrangement vent hole and hang hole.

4. Optional device for heat transfer printing and labeling on the surface of plastic bag.

5. The equipment can be customized according to customer's requirements.



Product characteristics

1.The machine use double cylinder drive to increase balance, the pressure plate is more flat, the pressure is more stable, the paper card and blister adhesive perfectly

2.Unique press plate heating delay design allows the heal sealed products much better and more attractive

3.The round plate (square plate) can be chronological, counterclockwise rotation at will.

4.Small size allows to put anywhere and easy handle and convenient to operate should improve the work efficiency.



Parameters
Type PF-150 PF-300 PF-400 PF-450 PF-600
Thickness range(mm) 0.06-6 0.06-6 0.06-6 0.06-6 0.06-6
Max speed(M/min) 80 80 60 60 60
Min feeding size(W x L mm) 30X30 100X100 100X100 100X100 100X100
Max feeding size (WXL mm) 150X150 300X300 400X400 450X450 600X600
Stack height depend on product thickness Max400mm Max.400mm Max.300mm Max.300 Max.300
power 220V/0.4kw 220V /0.4kw 220V/0.75kw 220v/0.75w 220v/0.75

Industrial Card Dispenser Machine Multifunctional For Card Books 0
