Automatic Paper Cutting Machine
>
|
| Place of Origin | China |
| Brand Name | AM |
| Certification | CE,DAS,ROHS,ISO9001 |
| Model Number | DP-320D |
|
model
|

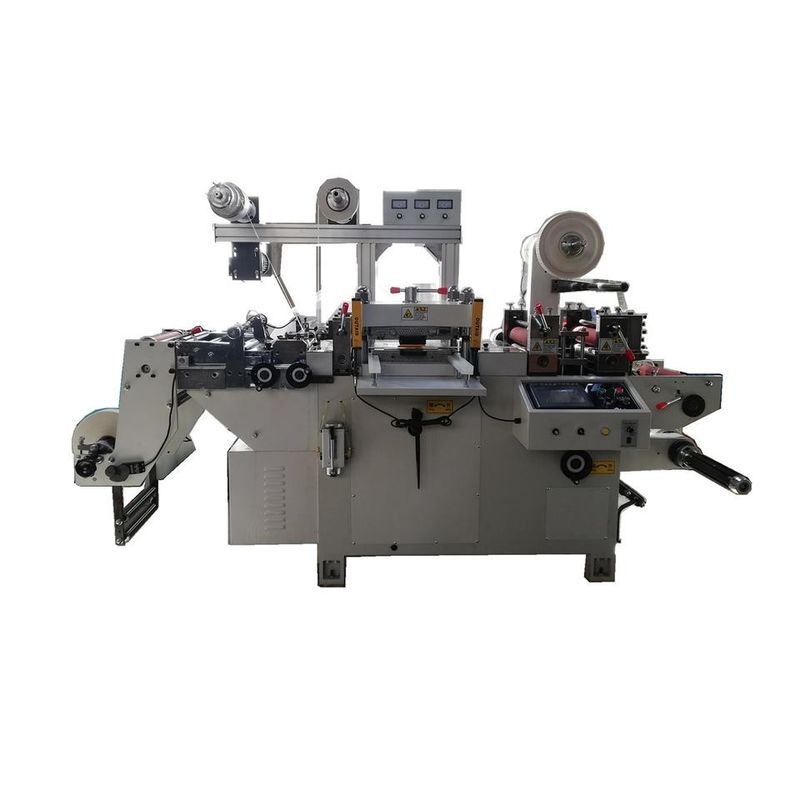

DP-320 Flat Bed Label Die Cutting Machine
|
DP-520 Flat Bed Label Die Cutting Machine
|
|
Max. material width
|
320mm
|
520MM
|
|
Cutting area
|
310*350mm
|
500*500MM
|
|
Max. Cutting speed
|
300 press/min
|
150 CUTS /MIN
|
|
Position accuracy
|
±0.10mm
|
0.1MM
|
|
Max. Length of meter
|
45m/min
|
45M/MIN
|
|
Unwinding/rewinding diameter
|
550mm
|
550MM
|
|
Voltage
|
380v (3 phase,380v)
|
380V
|
|
Total power
|
6kw
|
6KW
|
|
weight
|
2000kg
|
4000KG
|
|
Dimension(L*W*H)
|
3000*1300*1400
|
3300*1700*1400MM
|
Machine main technical data
|
A. max die cutting speed 300 cuts/minute
B. die cutting area 320*300mm(width * length ) C. unwind roll max diameter 500mm D. max paper roll diameter 320 mm E. left to right position precision : ±0.50mm F. Step Accuracy : ±0.10mm G. Total power : about 6.0kw H. Power Voltage: 1P 220V 50HZ I. Machine Net weight about 1650kg J. machine size(length *width * height ): 2700*1050*1400mm( Removable 1600*1050*1400mm) |
Description:
This machine is applicable to die cut through platenwith high precision,while the computer controls the slices and conveyor.The sides of trademarks and longitudinal route are tracked through three photoelectric eyes to position,while the die cutting,discarded delivery or auto trademark labeling can be finished in the processing of one web.
The machine is applicable to die cut paper self adhesive trademark, Dacron film trademark and laser anti-false trademark.It is an ideal complete set of flexo printing machine,continuous thread printing machine,gravure printing machine and die compress machine for anti-false trademarks.
Optional configuration:
1. Hot stamping unit
2. Punching unit
3. Lamination unit
Advanced technology:
HIGH SPEED UP TO 300 CUTS PER MINUTE
1. Big die cutting size: 420*400mm or 320X300mm
2. four axis linakge, stable running
3. machine is equipped with auto circulation oil pump, transmission part can add oil automatically after machine starting
