Semi Automatic Paper Board Die Cutting Machine , Manual Box Die Cutter ISO9001 Certified
  • Semi Automatic Paper Board Die Cutting Machine , Manual Box Die Cutter ISO9001 Certified
  • Semi Automatic Paper Board Die Cutting Machine , Manual Box Die Cutter ISO9001 Certified

Semi Automatic Paper Board Die Cutting Machine , Manual Box Die Cutter ISO9001 Certified

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number ML-1200
Product Details
Condition:
New
Key Selling Points:
Long Service Life
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Type:
Die-cutting Machine
High Light:

Manual Paper Board Die Cutting Machine

,

ISO9001 Paper Board Die Cutting Machine

,

Semi Automatic Box Die Cutter

Product Description

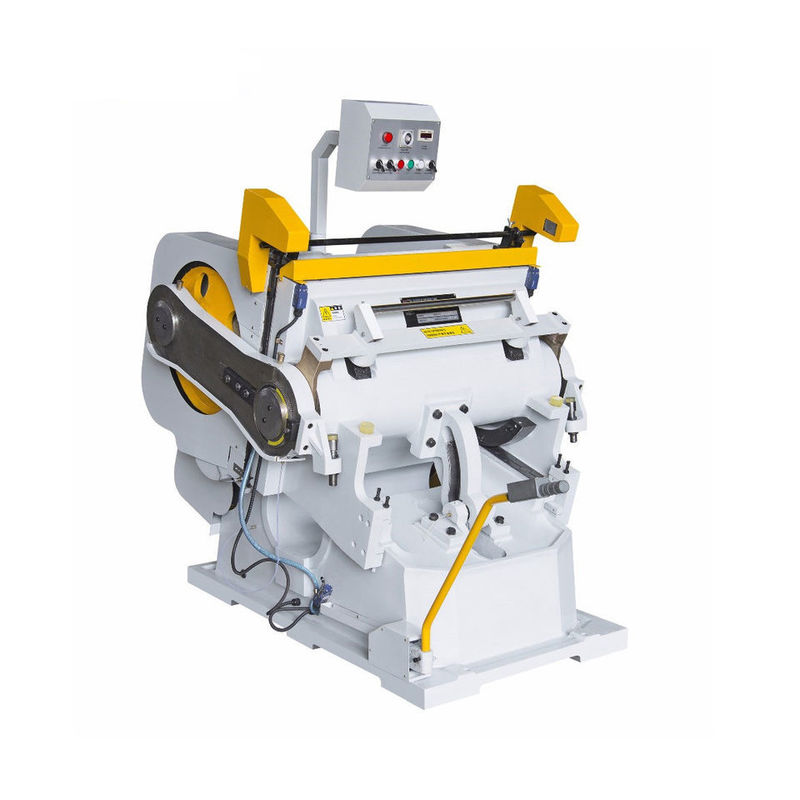

ML-1200 Semi Automatic Manual Paper Board Die Cutter Machine,Box Die Cutting Machine



Functions and Characteristics:



Model Max Size Speed Power Machine Size Weight
ML-750 750*520mm 28±2 strokes/min 2.2kw 1260*1350*1280mm 2000kg
ML-930 930*670mm 23±2 strokes/min 4.0kw 1800*1600*1600mm 3000kg
ML-1100 1100*800mm 20±2 strokes/min 5.5kw 1900*1800*1700mm 4500kg
ML-1200 1200*830mm 20±2 strokes/min 5.5kw 1900*2000*1700mm 4800kg
ML-1300 1300*920mm 18±2 strokes/min 7.5KW 2000*2400*1800mm 6000kg
ML-1400 1400*1100mm 18±2 strokes/min 7.5KW 2000*2450*1900mm 6500kg
ML-1500 1500*1050mm 18±2 strokes/min 7.5kw 2000*2500*1930mm 7000kg
ML-1600 1600*1250mm 16±2 strokes/min 11kw 2170*2560*2130mm

11000kg





Functions and Characteristics:



1) Equip with four insurance parts and four functions. The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.

2) The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable.

3) Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil supplying,.

4) Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.





FAQ



1. Who are we?
We are based in Hebei, China, start from 2009,sell to Central America(14.29%),Eastern Asia(14.29%),Mid East(14.29%),Africa(14.29%),Southeast Asia(14.29%),South Asia(14.29%),North America(5.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
corrugated cardboard production line,flexo printer slotter die cutter machine,flute laminator machine,folder gluer machine,corrugated cardboard line
