Horizontal Automatic Flat Labeling Machine For Pen Sticker Labeling
  • Horizontal Automatic Flat Labeling Machine For Pen Sticker Labeling

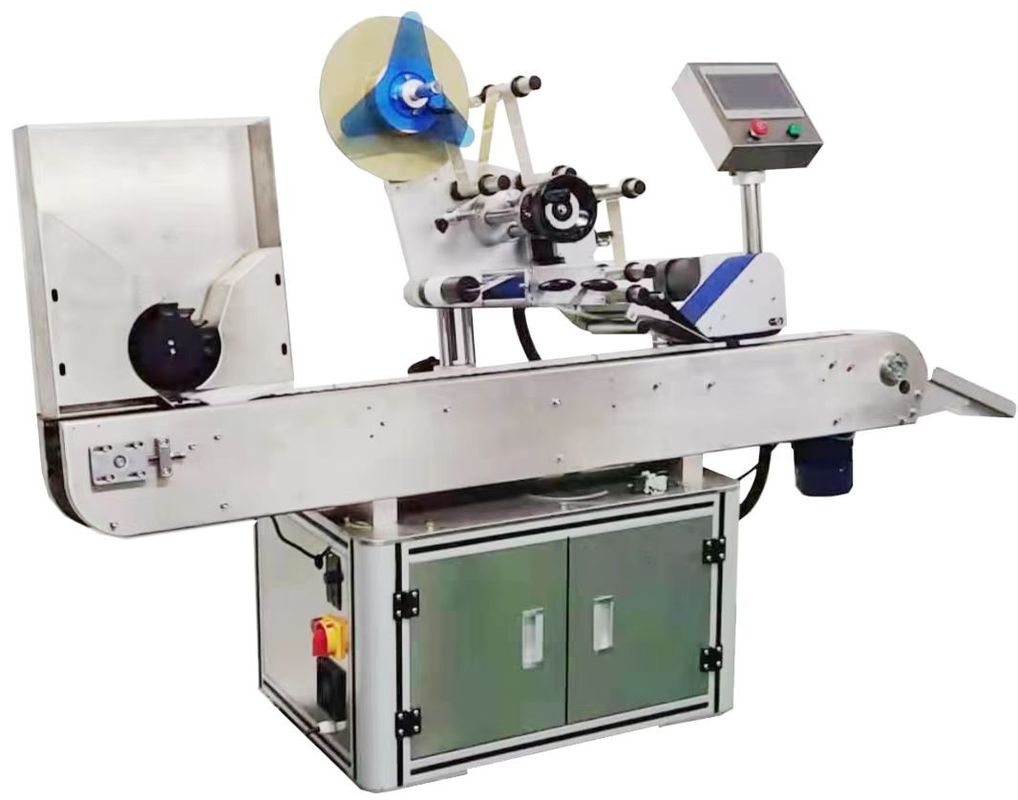

Horizontal Automatic Flat Labeling Machine For Pen Sticker Labeling

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number SHL-1582
Product Details
Electric Voltage:
AC220V 50/60HZ 1Phase
Power:
2KW
Labeling Speed:
0-240 Bottles/min(depend On The Length Of The Label)
Labeling Precision:
±0.5mm
Container’s Range:
Diameter 30-300mm Height 25-150mm
Label’s Range:
Height 18-90mm Length 11-120mm
High Light:

Horizontal Automatic Flat Labeling Machine

,

Pen Sticker Automatic Flat Labeling Machine

Product Description

Factory price automatic horizontal labeling machine pen sticker labeling machine labeller



Main Motor:

Adopted 5 phase stepping motor as the main labeling motor. Main difference between 2 phase and 5 phase and miocro stepping motor is the resolution of the the driver.

2 phase stepping motor has 400cells/circle,5 phase stepping motor has 1000 cells/circle.

It shows that the micro stepping motor performs best,speed up and down time is short,low dynamic inertia,suitable for labeling driving,high precision.



Operation:

Easy touchtone operation panel,toolless maintenance,shorten the worker’s training time.



Machine Design

Wear-resistant label rolling mechanism,use polyurethane material,not wear and tear.

Advanced screw wheel feeding mechanism,easy,steady,reliable,not broken bottles.

Use imported bearings for transporting wheels,make the bottles rolling agilely,ensure the labeling quality.

Durable frame and other parts,standard,changeable,can work 24hours.

Case is made of SUS304 stainless steel and T6 aluminum alloy,never rust,meets GMP standard.

Rolling wheel press bottle,make the label more fasten.

Label sync orientation mechanism,precision ±1mm

Multipoint E-stop button fixed on the suitable position of the production,makes it more safe,smooth.



Workflow

Bottle seperating-transporting-labeling-finish



Sticker label:

Body paper Use 62g glassine paper.
Basic weight 62g/㎡±5%
Thickness 55μm±5%
Anti-tensile strength Machine direction: 16kg/25mm
Cross: 7kg/25mm
Anti-tearing Machine direction:25g/pcs
Corss:31g/pcs
Transparence 52%
Labels distance 3-4mm±0.2mm
Edge distance between label and body paper 2mm



Horizontal Automatic Flat Labeling Machine For Pen Sticker Labeling 0
