Automatic Flat Labeling Machine
>
|
|
| Place of Origin | china |
| Brand Name | AM |
| Certification | CE,DAS,ROHS,ISO9001 |
| Model Number | Automatic Flat Labeling Machine |

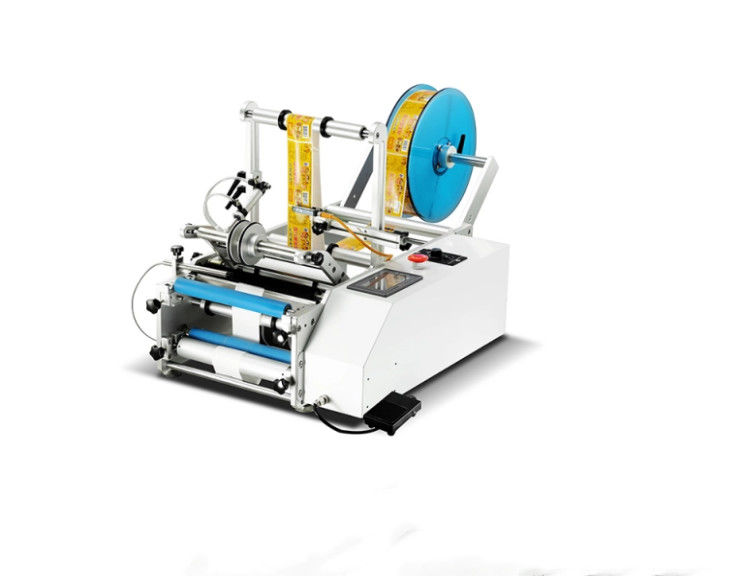

High quality semi-automatic pneumatic labeling machine factory direct sales
Product description
| Labeling accuracy: | ^0.5mm(excluding product and label errors); |
| Labeling speed: | 15~ 30 pieces/min (theoretical value, related to product, label size and operation level); |
| Applicable product size: | medium 10mm≤ diameter ≤φ150mm; |
| Applicable label size: | 20mms width ≤230mm, 20mms length <300mm; |
| Machine size: | about 950X560X530mm (length X width X height); |
| Applicable power supply: | 220V 50/60Hz; |
| Machine weight: | about 34Kg; |
| Applicable label diameter: | medium 76mm; |
| Applicable label diameter: | medium 280mm; |
Basic use
It can be used for labeling cylindrical objects of various specifications, such as xylitol, round bottle of cosmetics, round bottle cans, etc., equipped
with full-cycle/half-cycle labeling, full-cycle front and back labeling functions; It can be equipped with ribbon coding machine, inkjet coding
machine, labeling and printing batch number and other information.
Scope of application
Applicable labels: self-adhesive label, non-adhesive film, electronic supervision code, bar code, etc.
Applicable products: products requiring labels on the circumferential surface and conical surface;
Application industry: Widely used in food, medicine, daily chemical, electronics, hardware, plastic and other industries;
Application examples: can round bottle labeling, oral liquid round bottle labeling, celine bottle labeling, xylitol labeling, shampoo bottle labeling,
small taper cosmetic bottle labeling, etc.
Overall view
1. Material tray: used to place label rolls.
2. Traction drum: It is used for label winding to ensure label tightness and the reasonableness of force when label stripping.
3. Marker electric eye: used to detect the spacing of each marker.
4. Marker electric eye frame: used to install marker electric eye, which can move up, down, left and right.
5. Top pressing mechanism: It is used to press the bottle to ensure the effect of covering the label. The tightness can be adjusted by the left and right plum handle screws.
6. Strip label plate: used to strip labels, - as factory debugging, special circumstances can also be adjusted.
7. Positioning device: The label is positioned on the left side to ensure the position of the label on the bottle, which can be adjusted left and right.
8. Support rod: can be placed in different slots to adapt to different specifications of bottle labeling.
9. Traction mechanism: by pulling the bottom paper, peel off the label, its tightness can be adjusted by the plum handle screw.
10. Foot switch connection port: used to connect foot switch.
11. Control box: labeled electromechanical and gas control center, arranging various controls and PLCS.
12. Touch screen: man-machine dialog window for setting and adjusting various parameters.
13. Emergency stop switch: Used for emergency stop.
14. Speed control button: used to adjust the speed of the motor to control the labeling speed.
