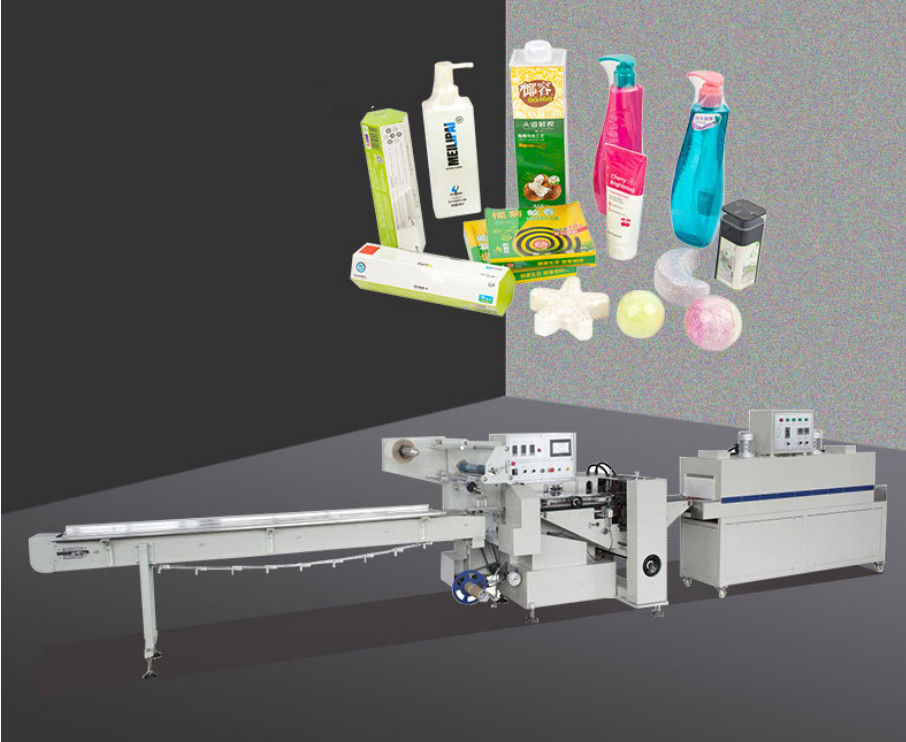

POF PVC Side Seal Shrink Wrap Machine , Industrial Plastic Wrapping Machine Reciprocating
  • POF PVC Side Seal Shrink Wrap Machine , Industrial Plastic Wrapping Machine Reciprocating
  • POF PVC Side Seal Shrink Wrap Machine , Industrial Plastic Wrapping Machine Reciprocating
  • POF PVC Side Seal Shrink Wrap Machine , Industrial Plastic Wrapping Machine Reciprocating

POF PVC Side Seal Shrink Wrap Machine , Industrial Plastic Wrapping Machine Reciprocating

Place of Origin china
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number ZW-500
Product Details
Brand Name:
AM
Place Of Origin:
Guangdong, China
Power Supply:
380(V)
Work Efficiency:
30-150(pcs/h)
Processing Customization:
YES
Mechanical Dimension:
480*1170*1500(mm
Model Number:
ZW-500
Power:
13.5(Kw)
Weight:
380(kg)
High Light:

PVC Side Seal Shrink Wrap Machine

,

POF Side Seal Shrink Wrap Machine

,

Industrial Plastic Wrapping Machine Reciprocating

Product Description

Full servo side seal reciprocating packaging machine POF/PVC plastic film beverage plastic wrap packaging equipment



Main technical parameters



Model ZW-500 ZW-720
Max Flim size ≤590mm ≤720mm
Packing size L : L:80mm-450mm L:120mm-600mm
W: w:20mm-200mm w:20mm-250mm
H: H:5mm-90mm H:30mm-145mm
Packing speed 30-175 packs / min 30-130 packs / min
Flim type POF
Power consumption Packaging machine:4.75KW;Shrinking machine:13.5KW
Power supply Packaging machine:220V,50HZ/60HZ;Shrinking machine:380V,50HZ/60HZ
Envelop dimensions 4900x1130x1500mm
Shrinking machine 2600x600x1750mm
Weight Packaging machine:1200KG Shrinking machine:380KG





OUR TEAM:

Our team is young, passionate, responsible, and hard-working, which is determined to succeed and fuel our future. Our team members are all technically trained and can source any product and offer unbeatable prices. Our team is also able to tackle the most challenging problems and work together to provide strategic solutions.





Commitment
We strive to provided our clients an exceptional quality service from the moment you ask for an inquiry. We understand that selecting the right products is essential to your success, which is why we follow the high quality standards from R&D component selection to production assembly to ensure that all of your requirements are completely understood, and can be met in full.
We are always on hand to assit with inquiries, whether it is help or guidance with technical specifications, or just some friendly advice, we are never too busy.





Performance characteristics



1. Using three servo motor drive, the whole machine is easy to operate, high stability, high packaging efficiency



2. Less mechanical parts, greatly reducing the failure rate of mechanical parts, easy maintenance, less noise.



3. It adopts reciprocating transverse sealing knife base design, beautiful appearance and good sealing performance.



4. High sensitivity photoelectric eye color mark tracking, mathematical input sealing cut position, make sealing cut position more accurate.



5. Side seal can use electrostatic adsorption instead of heat seal cutting, more cost-saving packaging film, sealing line more smooth and beautiful



6. Cantilever frame design body, strong and durable.



7. Temperature Independent PID control, more suitable for a variety of coating materials.



8. Positioning stop function, non-stick knife, do not waste film.



9. Simple transmission system, more reliable work, more convenient maintenance.



10. Switch to automatic product reversal, restart directly after boot for easy operation





POF PVC Side Seal Shrink Wrap Machine , Industrial Plastic Wrapping Machine Reciprocating 0POF PVC Side Seal Shrink Wrap Machine , Industrial Plastic Wrapping Machine Reciprocating 1
