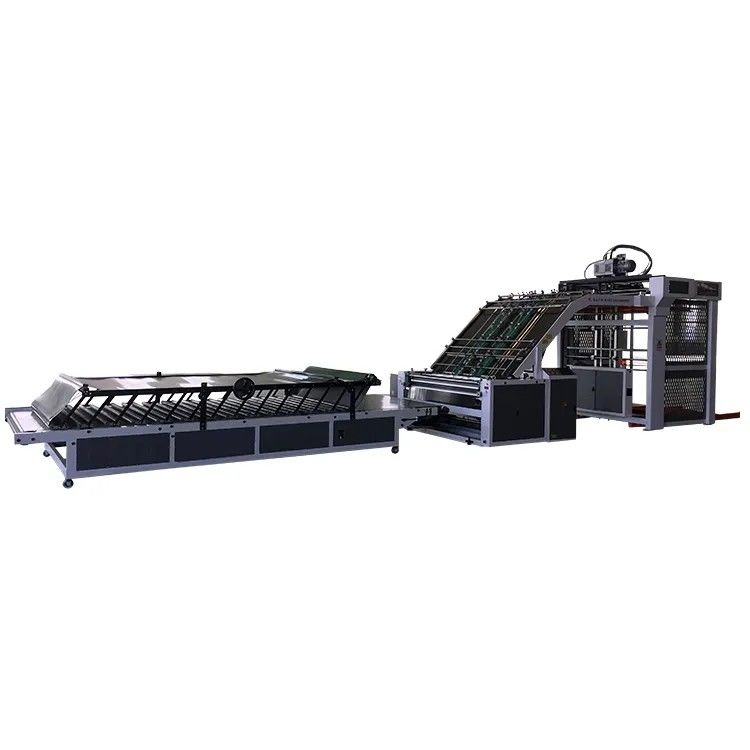

7kw High Speed Laminating Machine , Intelligent Automatic Flute Laminator Machine
  • 7kw High Speed Laminating Machine , Intelligent Automatic Flute Laminator Machine
  • 7kw High Speed Laminating Machine , Intelligent Automatic Flute Laminator Machine
  • 7kw High Speed Laminating Machine , Intelligent Automatic Flute Laminator Machine
  • 7kw High Speed Laminating Machine , Intelligent Automatic Flute Laminator Machine

7kw High Speed Laminating Machine , Intelligent Automatic Flute Laminator Machine

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number Laminating machine
Product Details
Driven Type:
Electric
Power:
7kw
Dimension(L*W*H):
10m X 2.2m X 2.2m
Max Size:
1450*1300mm
Speed:
0-100m/min
Overall Size:
12.0m*2.40m*2.655m
High Light:

Intelligent High Speed Laminating Machine

,

Flute High Speed Laminating Machine

,

7kw Automatic Flute Laminator Machine

Product Description

Fully Automatic Intelligent High Speed Flute Laminating Machine



Product Parameters
Max size 1450*1300mm
Min size 350mm*350mm
Speed 0-100m/min
Total power 12kw
Overall size 12.0m*2.40m*2.655m
Weight 7.2T



Paper request

Bottom paper : 350-800 800g/m2

Max thickness: 10mm
Face paper : 180-800 g/m2



Machine Character

1, Adopt unique press spring type FRONT LAY design which low rate of break down And with intelligent control can laminate paper in right position.

2, Adopt frequency convertor for speed regulation , PLC control , run and control rightly .

3, Double servo control are used to make bottom paper send to front lay timely and accurately . to promise machine working accuracy when machine run.

4, Glue roller and doctor roller work together to improve homogeneity of glue . will low cost glue for customer.

5, Steel roller through balanced processing and testing, with tight assembly process effectively improve the mechanical stability, combined with the main transmission . adopts the timing belt drive, bottom paper suction feeder directly, effectively improve the precision and speed of mechanical operation.

6, Glue level control system , automatic glue recycle , reduce worker labor.

7, Material are used for this machine according to ISO 90001 . good quality material , key part like bearing is imported. Electric part used all world famous brand and China well-known brand.

8, Self-develop high strength feeder compliant with high configuration electric system.

9, Suit 150-450 gsm face paper with A,B,C,D,,E,F flute 3 ply, 5ply cardboard (thickness less than 8mm )



Why choose us?

1. Our brand is well-known in our domestic market and over 70 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc.

2. Genuine products with excellent quality. Company has always proved the 100% quality.

3. After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas.

4. Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving.

5. Less cost of purchase: We are the manufacturer directly.

6. Attendant customers queries promptly.



FAQ:

Q1: Are you a manufacturer?
Yes, we are specialized manufacturer of hot foil stamping machine and die cutting machine in China over 20 years.

Q2: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.

Q3: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.

Q4: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear.
