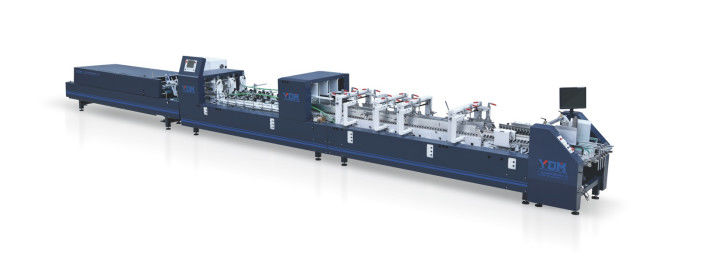

300m / Min Speed Automatic Folder Gluer Machine 380V 50Hz YDS-1200BTG
  • 300m / Min Speed Automatic Folder Gluer Machine 380V 50Hz YDS-1200BTG
  • 300m / Min Speed Automatic Folder Gluer Machine 380V 50Hz YDS-1200BTG
  • 300m / Min Speed Automatic Folder Gluer Machine 380V 50Hz YDS-1200BTG

300m / Min Speed Automatic Folder Gluer Machine 380V 50Hz YDS-1200BTG

Place of Origin China
Brand Name AM
Certification CE,DAS,ROHS,ISO9001
Model Number YDS-1200BTG
Product Details
Max Speed:
300m/min
Overall Dimension:
14500 (L) ×1450 (W) ×1500mm(H)
Weight:
6500Kg
Power Consumption:
14KW, 380V AC 50Hz
Model:
YDS-1200BTG
Origin:
CHINA
High Light:

300m/min Automatic Folder Gluer Machine

,

380V Automatic Folder Gluer Machine

,

50Hz automatic folder gluer

Product Description

YDS-1200BTG Automatic Folder and gluer machine



Feeder

● feeding belts (specification:8×25×1207mm)

●Six feeder belts including 4 drilled belt for suction function.

● Equipped with adjustable feeding knives:

● Equipped with vibrator motor :

● Equipped with Suction feeding system:

● Independent A/C motor with variable speed adjustment for even distance of sheets



FEATURES

● the whole machine adopts the structure of laser-cut steel plates.

● Use America EP synchronous belts and wheels, correct running ratio, high speed, stable working, low noise and long service life.

●Modular structure and hommization design can enhance the installation and box change-over time.

●Inner couriers in the machine are adjusted by motors

●Bearings are used in this machines: China CHNT group C&U. Most of electrical components are Schneider brand.



Advantages:

1. Belts are running in rail guide, will not go to sides.

2. Heavy-duty pneumatic longer conveyor, suitable for corrugated, and the whole conveyor can be moved left and right. The two sections of the conveyor can be moved front and back, up and down, more suitable for different corrugated boxes.

3. Equipped with jogger, avoiding fish-tail boxes.

4. The whole machine is of more compact structure, more beautiful figure.

5. Fastening devices for shafts are used to make the machine run more stable and longer service life.

6. The speed in pressing section is 30% faster than that in the main section, avoiding the boxes jammed onto the conveyor.



Parameter

Paper weight

duplex box 200-800 g/m2,N,F,E Flute (Corrugated)

corrugated boxes, 3 ply of E flute(3.5-4 mm thickness),

Max speed 300m/min
Overall dimension 14500 (L) ×1450 (W) ×1500mm(H)
Weight 6500Kg
Power consumption 14KW, 380V AC 50Hz
Box Type Straight line boxes ,lock bottom boxes ,one side glue boxes and two sides glue boxes,CD boxes



300m / Min Speed Automatic Folder Gluer Machine 380V 50Hz YDS-1200BTG 0

300m / Min Speed Automatic Folder Gluer Machine 380V 50Hz YDS-1200BTG 1
